Szczegóły Produktu:
|
| Nazwa: | Maszyna do formowania beczek z tektury falistej Afica | Materiał rolkowy: | Cięcie hydrauliczne |
|---|---|---|---|
| Woltaż: | 380V/220V/415V/440V | Materiał ostrza tnącego: | CR12 |
| Materiał rolek: | 45#kuźnia stali | Materiał wału: | Stal 45#, hartowana |
| Skuteczna szerokość: | 850 mm | Typ marketingowy: | Gorący produkt 2021 |
| Prędkość: | 8-12 m/min | Panel boczny: | 20mm |
| Podkreślić: | corrugated drum barrel forming machine,roofing sheet roll forming machine,Afica profile roll forming machine |
||

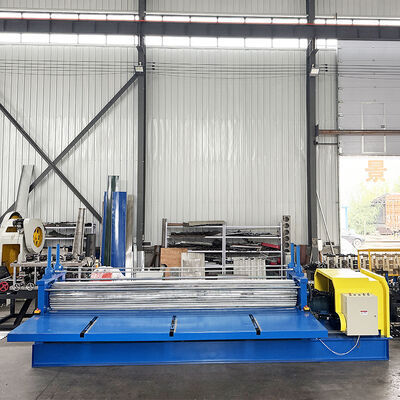

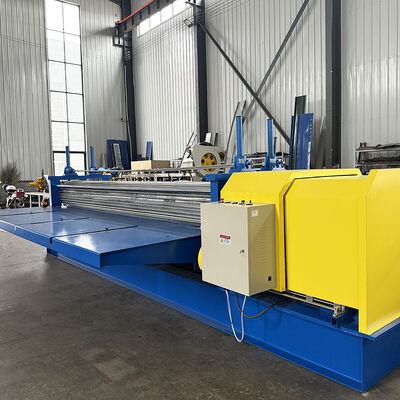

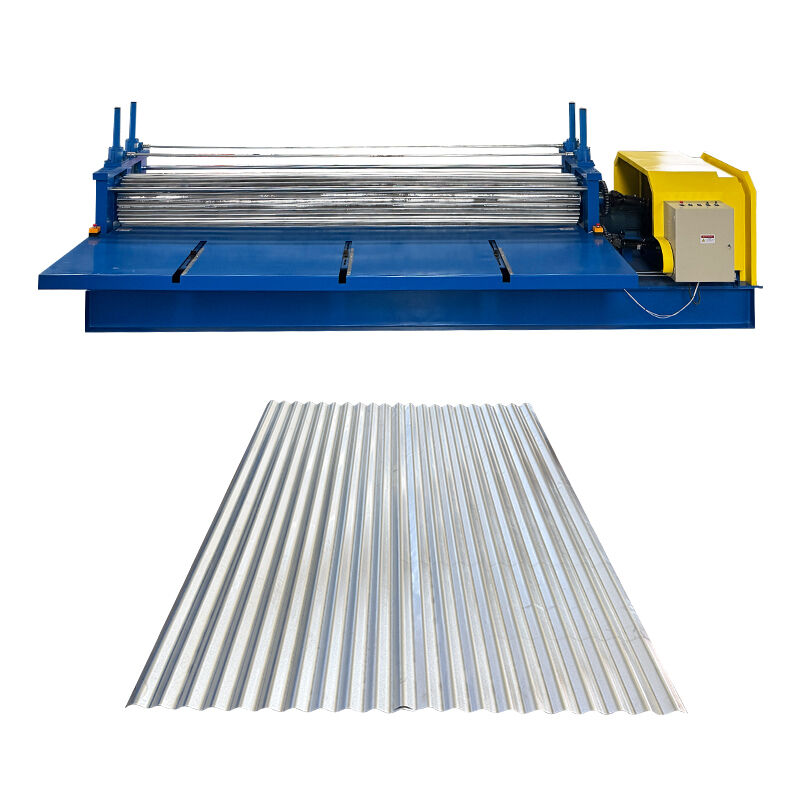

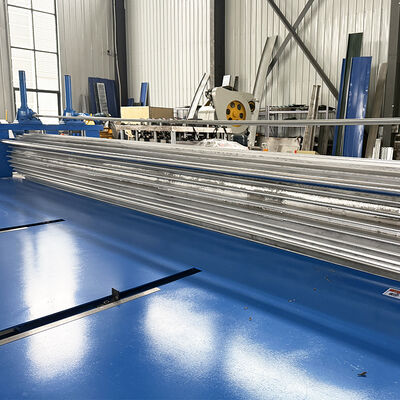

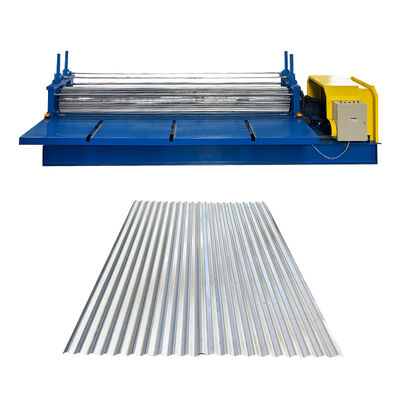

Afica Popular Profile Corrugated Drum Barrel Rolling Forming Machine
1. What is the application of IBR Sheet roll forming machine ?
Corrugated sheet roll forming machine mainly producing steel roof/ wall sheet .The final products have two types,corrugated sheet and trapezoidal sheet.As we know, steel roof/ wall sheet is widely used in large span factory building, warehouse, office buildings, villas, roof, cold storage, air purification room, stores, kiosks, and temporary housing.
| Manual decoiler |
Inner diameter:470-510mm Outer diameter:1500mm Max Coil width:1500mm Capacity: 5.0T Decoiler dimension:1.5*1.5*1.5m Decoiler weight:355KGS Quantity: 1set Usage: It is used to support the steel coil and uncoil it in a turntable way. Passive uncoil pulled by roll forming system |
| Main roll forming machine |
Feeding device: With two hand wheels to adjust the feeding of the material,with bearing inside of the feeding rollers.
Machine frame: 350H steel welded
Machine structure: middle plate
Roller material: 45# steel withquenched treatment and hard chroming
Shaft diameter: 100mm,solid
Shaft material: 45# steel with tempering treatment
Motor power: 15 kw
Speed: about 20m/min
Transmission: By chains
Voltage: 380V,50HZ,3Phase
|
| Computer Control Cabinet | Programmable setting of profile length and quantity,Computed mode has two modes: automatic and manual.The system is easy to operate and use Language:English, Chinese,Spanish and Russian |
| Product Stand | Main framework adopts welded steel and supported roller,used for transmit and collect the finished products. |
3. Afica Popular Profile Corrugated Drum Barrel Rolling Forming Machine raw materials :
5. Afica Popular Profile Corrugated Drum Barrel Rolling Forming Machine After sales service:
1) Installation and training:
a. If buyers visit our factory and check the tiger tile sheets machine , we will teach you how to install and use the machine, and
also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2) After Service
a. One year guarantee for whole machine.
b. 24 hours technical support by email or calling
c. If there is any problem found of the machine, we will repair it for free in one year.
6. We want to know following information.
1), What is the exact profile you want to produce?
2), What kind of material you will use, such as steel or aluminium, max coil weight, thickness?
3), What kind of decoiler and stacker you need?
Pls contact us as below informaiton,hope can cooperate,thanks advance
