Szczegóły Produktu:
|
| Woltaż: | 380 V 50 Hz 3 fazy | Używać: | C&Z |
|---|---|---|---|
| System sterowania: | Plc (marka importowana) | Materiał rolkowy: | CR12 |
| Nazwa: | Przekładnia maszyny do formowania rolek o grubości 6 mm, ocynkowana w kształcie litery L | Kolor: | niebieski lub zgodnie z potrzebami klienta |
| Podkreślić: | 6mm galvanized L shape roll forming machine,L shape roll forming machine gear box,purlin roll forming machine with gear box |
||

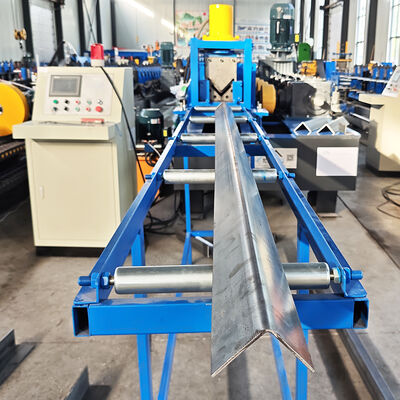

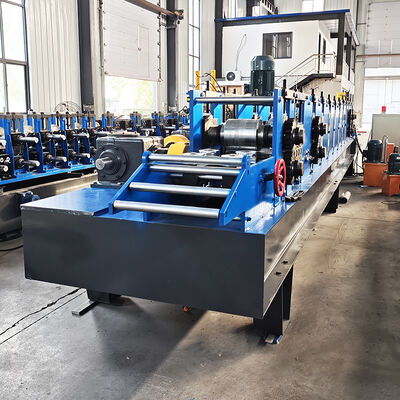

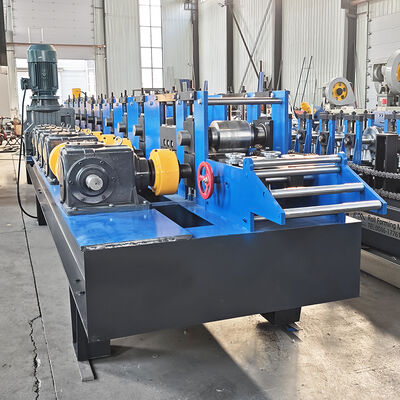

6mm Thickness Galvanized L Shape Roll Forming Machine Gear Box
6mm Thickness Galvanized L Shape Roll Forming Machine Gear Box Technical parameters:
| Raw material | |
| material spec | sheet, galvanized steel sheet, aluminum sheet |
| thickness of coil sheet | 3-6mm |
| Machine details | |
| roller material | High grade Gcr14 forged steel with 0.05mm hard chrome plating |
| shaft material | High grade NO. 45 carbon wrought steel |
| cutting blade | Cr12 mould steel with quenched treatment |
| diameter of shaft | 1000mm |
| forming steps | 10 rows |
| productivity | 8m/min |
| hydraulic station power | 22 KW |
| hydraulic pressure | 10-12MPa |
| controlling system | famous PLC computer control |
| material of cutting table | Cr 12 mould steel with quenched treatment |
| appearance size | 7500mm*1150mm*1510mm |
| hydraulic oil | 40# hydraulic oil |
| Electric tension | 380V 50 Hz 3 Phase or as your requirements |
6mm Thickness Galvanized L Shape Roll Forming Machine Gear Box Device Configuration
| No | number | |
| (1) | Manual decoiler | 1 set |
| (2) | Guiding device | 1 set |
| (3) | Main roll forming machine | 1 set |
| (4) | Hydraulic cutting device | 1 set |
| (5) | PLC electric control system | 1 set |
| (6) | Hydraulic driving system | 1 set |
| (7) | Special tools and parts | 1 set |
|
Characteristic |
|
A. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also trainyour workers/technician face to face.
B. Without visiting, we will send you user manual and video to teach you to install and operate.
C. If buyer needs our technician to go to your local factory, please arrange board and lodging andother necessary things.
6mm Thickness Galvanized L Shape Roll Forming Machine Gear Box Our Machine Advantage
1. Good quality: We have a professional designer and experienced engineer team.And the raw material and accessories we use are good.
2. Good service: we provide the technical support for whole life of our machines.
3. Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.
4. Easy operation:All machine cotrolled by PLC computer controlling systerm.
5. Elegant apperance:Protect the machine from rust and the painted colour can be customized
6. Reasonable price:We offer the best price in our industry.
6. FAQ
1. Q: Are you manufacturer or trading company?
A: We are manufacture
2. Q:What info you need before you make the proposal?
A:The pipe diameter and thickness range which you need or the profile drawings, material information, your special requirements.
3. Q: what is the MOQ?
A: One set
4. Q: Do you provide installing and debugging overseas?
A: Overseas machine install and worker training services are optional
